Model 525
Mesquite Fired Barbecue Kit

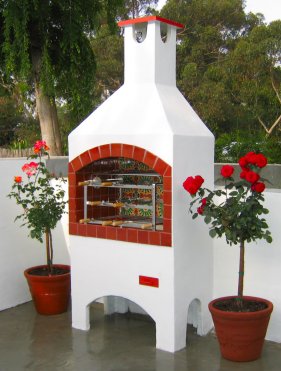

Model 525
shown with brick veneer finish and optional rotisserie kit.

Model 525 BBQ Kit $2,499.00

The Model 525 is our largest
wood charcoal barbecue kit

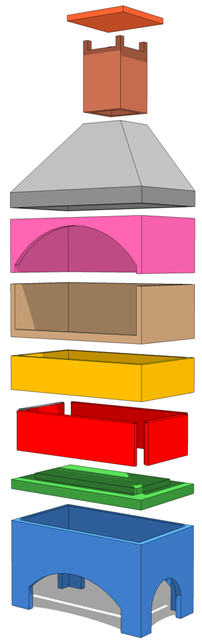

525 Kit Components:

Chimney and cap
Upper hood
Upper cooking area
Lower cooking area
Firebox surround
Inner firebox (real firebrick)
Firebox floor
Stand
Ash drawer

All kit components are made using
refractory materials reenforced with steel rod. The fire box is cast using fire brick. Kit includes refractory clay sand for mortar, installation instructions and warranty card.

Weight =1182 lbs

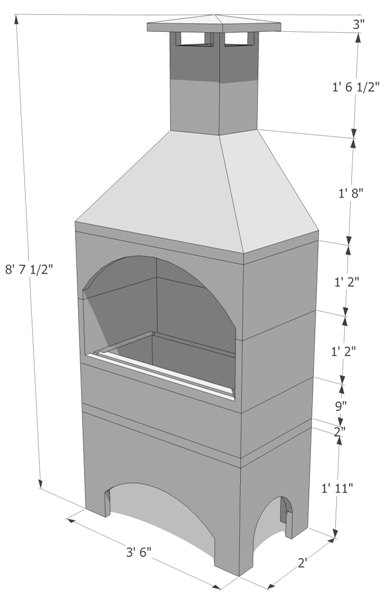

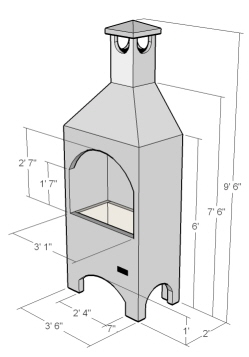

Dimensions

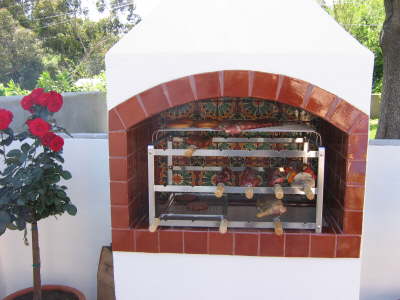

see a 525 installation here

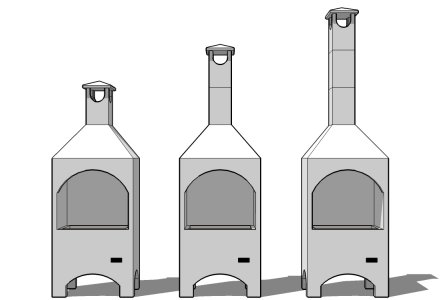

Standard           with one extension     with two extensions

Chimney extensions are available that can raise the Model 525s chimney stack up to a total of 5 feet.
For indoor installations, chimney systems can be up to 50 feet long using double wall isulated metal pipe.

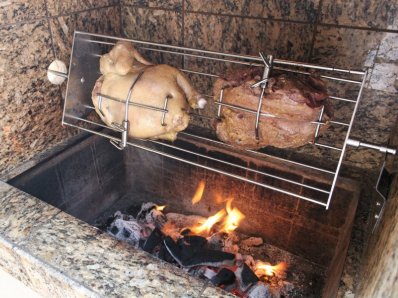

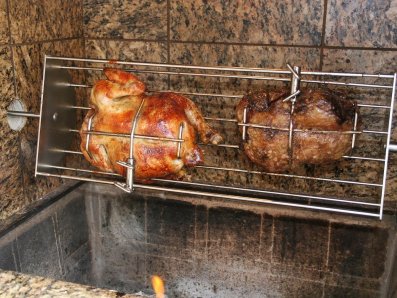

All our wood charcoal barbecue kits are designed for authentic Churrasco and Gaucho Style cooking. Our spit rotisserie kits can be motorized or manual and fit a wide assortment of spits and grills.

Our charcoal barbecue kits can also be used to barbecue large cuts, like a whole chicken, lamb roast, ham, turkey, etc. This can be done when a conventional rotisserie like the cradle model shown here is used.
