Glendale, California

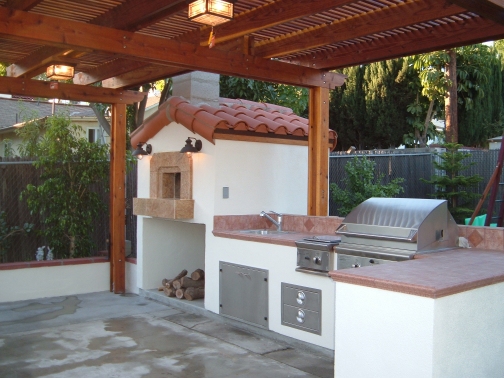

This outdoor kitchen and redwood pergola were designed and built in 2004 by Sergio de Paula and his crew, using concrete masonry, with a stucco finish. This outdoor kitchen includes a Fogazzo Model 1050 wood fired oven with granite around the door opening and a two-piece Spanish tile roof, a 27” DCS natural gas barbecue with rotisserie, a single DCS natural gas side burner, a stainless steel sink with an instant water heater, and a GE refrigerator with stainless steel door. This outdoor kitchen also features Italian ceramic tile countertops and plenty of storage space behind stainless steel doors and drawers. This is a beautiful and functional outdoor kitchen installation.

Here is how this beautiful outdoor kitchen was built from start to finish

Trench for water line

Excavating for footings

Root ball

Large root ball

Footing and slab forms

Oven footing and slab forms

Steel re-eforcement

Steel for oven footings and floor slab

Outdoor kitchen footprint

Underground and steel in place

Footings and floor slabs being poured

Oven footing and floor slab

Outdoor kitchen slab with utilities stubbed out

Clean-up after pour

Masonry work

Masonry re-enforcement detail

Dowel detail

Masonry re-enforcement detail

Masons at work

Block work in progress

Oven walls in place

Forms for oven shelf

Form support detail

Forms for shelf

Steel re-enforcing for oven shelf

Steel re-enforcement detail

Main shelf and extension re-enforcement detail

Poured shelf is checked for level

Completed oven base with shelf

Model 1050 oven assembly

Oven assembly

Model 1050 oven assembly, rear dome section

Oven assembly

Assembled oven is surrounded with masonry

Forms for oven roof pitch

New planter built with CMU block

Planter wall connection detail

Kitchen progress shot with planter

Capped planter with new plants

Pergola posts set on post footings

Redwood pergola progress

Pergola construction

Pergola joisting

Pergola joisting

Pergola joist connections

Pergola joist connection details

Pergola joists and cross joists

Joisting detail

Pergola covered with 2 by 2 redwood

Pergola cover detail

Finished redwood pergola

Kitchen front wall forms

Stucco work

Finished stucco

Kitchen progress shot

Oven opening detail

Mixed sand and vermiculite for oven insulation

Oven dome detail prior to insulating

Oven dome detail

Oven first firing with alcohol gel fuel

Kitchen progress shot

Countertop tile installation

Countertop tile

Tile work progress

Countertop tile work

Tile work detail

Tile accent detail

Completed countertop

Oven roof detail

Chimney stack re-enforcent detail

Oven insulation

Two-piece spanish roof tiles

Roof tile installation

Roof edge detail

Chimney weatherproofing detail

Roof tile installation

Roof tile installation shot

Rear shot of roof tile install

Oven lights installed

Built out for oven door detail

Oven door surrond tile

Granite installation

Granite tile detail

Granite door surround installed

Tile installation support detail

Kitchen progress shot

Kitchen progress shot with lighting

Kitchen lighting detail

Front shot

Outdoor kitchen

Outdoor kichen

Homeowners with contractors
